| ชื่อแบรนด์: | GENY |
| เลขรุ่น: | YC99T-5C |
| ขั้นต่ำ: | 1 ชิ้น |
| ราคา: | ต่อรองได้ |
| เงื่อนไขการจ่ายเงิน: | แอล/C,ที/ที,ดี/พี |
| ความสามารถในการจําหน่าย: | 100/ปี |

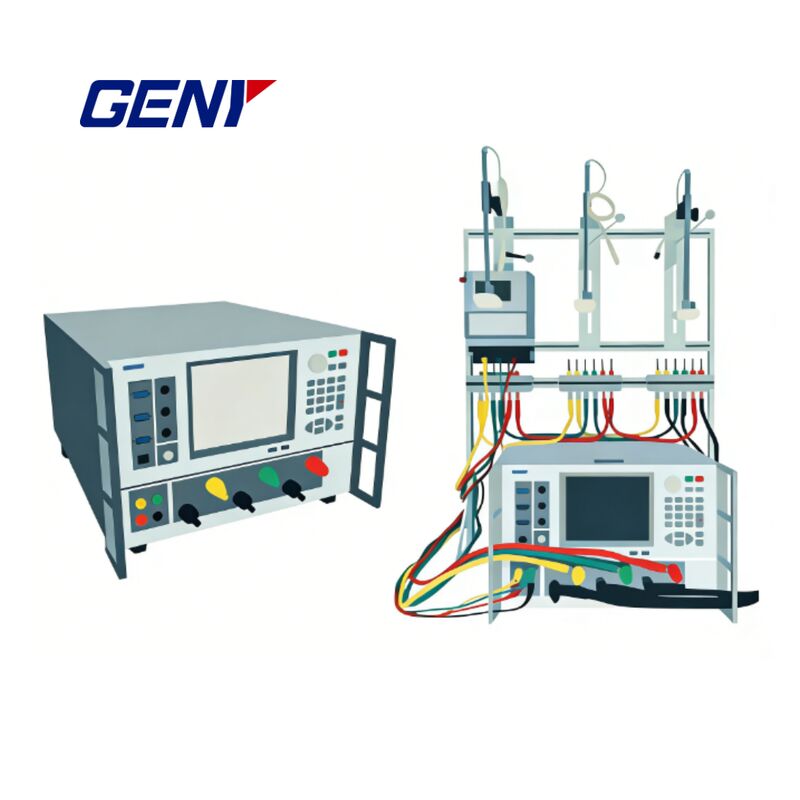

The YC99T-5C is a professional-grade portable 3-phase meter tester designed for comprehensive electrical meter calibration and testing. Featuring harmonic output capabilities and automated calibration processes, this instrument delivers precision and efficiency for industrial testing applications.
YC99T-5C vs YC99T-3C:
YC99T-5C offers similar functionality but with different voltage and current output suitable for medium-range calibration. YC99T-3C provides more voltage and current channels, ideal for large-scale multi-meter testing environments.
| Voltage Source | |
|---|---|
| Voltage Range | 57.7V ~ 380V |
| Test Voltage Output (Phase-Neutral) | 3* (0V - 450V) |
| Output Capacity | 30VA max/phase |
| Resolution | 0.01% |
| Accuracy | 0.05% |
| Stability | 0.01%/180s |
| Distortion Factor | < 0.2% for linear resistance load |
| Current Source | |
| Current Range | 50mA - 120A |
| Test Current Output | 3*(1mA - 120A) |
| Output Capacity | 100 VA max/phase@100A |
| Resolution | 0.01% |
| Accuracy | 0.05% |
| Stability | 0.02%/180s |
| Distortion Factor | < 0.2% for linear resistance load |
| Phase Angle | |
| Range | 0 - 360° |
| Resolution | 0.01° |
| Accuracy | 0.05° |
| Frequency | |
| Range | 40Hz - 70Hz |
| Resolution | 0.002Hz |
| Pulse Output | |
| High Frequency Output (CH) | 1.666×10⁵ Hz |
| Low Frequency Output (CL) | 5×10⁻⁵×CH |
| Pulse Input | |
| Input Channel | 3 |
| Input Frequency | Max. 20Hz |
| General Specifications | |
| Voltage Supply | 110V/220V ±15% 50/60Hz±2Hz |
| Ambient Temperature | -10°C - +40°C |
| Relative Humidity | 35% - 85% |
| Dimensions (W×H×D) | 445×180×680 mm |
| Weight | 46 kg |
