Accuracy Class 0.05 Poly Phase Meter Testing System with Aluminum Alloy Structure Test Rack

ชื่อแบรนด์:	GENY
เลขรุ่น:	YC-1891D
ขั้นต่ำ:	1 ชิ้น
ราคา:	ต่อรองได้
เงื่อนไขการจ่ายเงิน:	แอล/C,ที/ที,ดี/พี
ความสามารถในการจําหน่าย:	100/ปี

ข้อมูลรายละเอียด

คําอธิบายสินค้า

ข้อมูลรายละเอียด

สถานที่กำเนิด:

จีน

ได้รับการรับรอง:

ISO, CE

เอกสาร:

Catalogue——Meter Test S...m..pdf

เครื่องวัดมาตรฐานอ้างอิง:

SZ03A-K8 (ปรับแต่ง)

แหล่งพลังงาน:

YCS-103-250 、YCS-103-600 、YCS-103-1200 、YCS-103-2500

สแกนหัว:

ซีรี่ส์ YCG-S

รายละเอียดการบรรจุ:

กรณีไม้อัด

สามารถในการผลิต:

100/ปี

เน้น:

0.05 accuracy poly phase meter tester

aluminum alloy meter test system

stationary poly phase test rack

คําอธิบายสินค้า

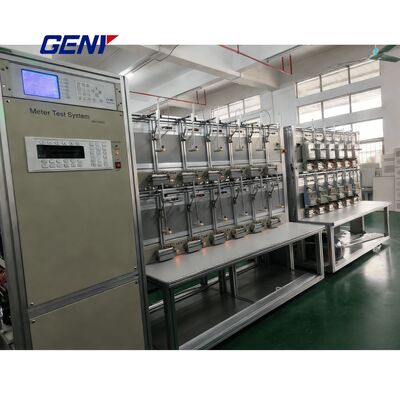

Accuracy Class 0.05 Poly Phase Meter Testing System

High-precision poly phase meter testing system featuring an aluminum alloy structure test rack for superior durability and performance in industrial metering applications.

Technical Specifications

Voltage Specifications
Test voltage output (Phase-Neutral)	3x(24V~288V) (or customized)
Power of the voltage output	Max. to 3x500VA
Resolution	Better than 0.01% of full scale value of range
Setting accuracy	Better than 0.05% at the final range value
Stability	Better than 0.005% /h (integration time 150s)
Load regulation from 0~max. load	Better than 0.01%
Distortion factor	Better than 0.3% for linear resistance load
Harmonic	2nd~21st free programmable

Current Specifications
Test current output	3x(1mA~100A)
Power of the current output	Max. 3x150VA \| Max. 3x350VA \| Max. 3x750VA \| Max. 3x1500VA
Resolution	Better than 0.01% of full scale value of range
Setting accuracy	Better than 0.05% at the final range value
Stability	Better than 0.005% /h (integration time 150s)
Load regulation from 0~max. load	Better than 0.01%
Distortion factor	Better than 0.3% for linear resistance load
Harmonic	2nd~21st free programmable

Additional Specifications
Phase angle range	0~360°
Phase angle resolution	0.01°
Phase angle setting accuracy	0.1°
Frequency range	45Hz~65Hz
Frequency resolution	0.01Hz
Error display type	Red LED
Error display resolution	8 digitals
Voltage supply	3x220/380V±10% (or customized) 50/60Hz ±2Hz
Ambient temperature	-10°C~+40°C
Relative humidity	35%~90%

Standard Functions

ICT installation in each meter position for three-phase meter testing with closed links between current and voltage measuring circuits
Testing capability for mechanical, electronic mechanical, and electronic meters via automatic, semi-automatic, or manual operation
Compatible with 3P4W, 3P3W, and 1P2W meters under testing
Testing modes: active power, reactive power, cross connected reactive power
Simultaneous measurement of meters with same specifications but different meter constants
Automatic positioning rotor mark of disc for mechanical meters with enhanced efficiency
Starting test and creeping test capabilities
Overload, short voltage circuit, and open current circuit protection functions
Swing-together scanning heads for simplified control
Aluminum alloy construction for lightweight, strong, and corrosion-resistant performance
Windows-compatible testing software (2000/XP/7/8/10) with comprehensive functional modules for error testing, harmonic testing, demand testing, and influence testing

Special Functions

Forward and reverse active, forward and reverse reactive error testing
SW-5D precise time reference source for energy meter daily time error testing
Communication test and time calibration with speaker
Constant checking (pulse counting, time, demand indication error test)
Time switch, demand period and demand indication error testing
Register indication and register combination error testing
Four quadrant reactive power testing
Power consumption testing (optional)
Voltage and current loop connection for measured meter (optional)
Tilt impact testing (optional)
Prepayment meter testing (optional)

Isolated Current Transformer (ICT) Specifications

Current range	3×(10mA - 120A)
Accuracy	0.05 (100mA - 120A)
Ratio	1:1 (primary current = secondary current)
Frequency range	45Hz - 65Hz
Output burden range	3×0.6V (max)
Output power	3×60VA (max)
Communication port	RS-485
Power supply	+/- 12VDC
Power consumption	20 VA (max)
Operation temperature	-10°C … +50°C
Storage temperature	-20°C … +60°C
Dimension (H × W × D)	290mm×275mm×296mm
Weight	approx. 17kg
