| ชื่อแบรนด์: | GENY |
| เลขรุ่น: | YC1893D |
| ขั้นต่ำ: | 1 ชิ้น |
| ราคา: | Negotiations |
| เงื่อนไขการจ่ายเงิน: | แอล/C,ที/ที,ดี/พี |
| ความสามารถในการจําหน่าย: | 100/ปี |

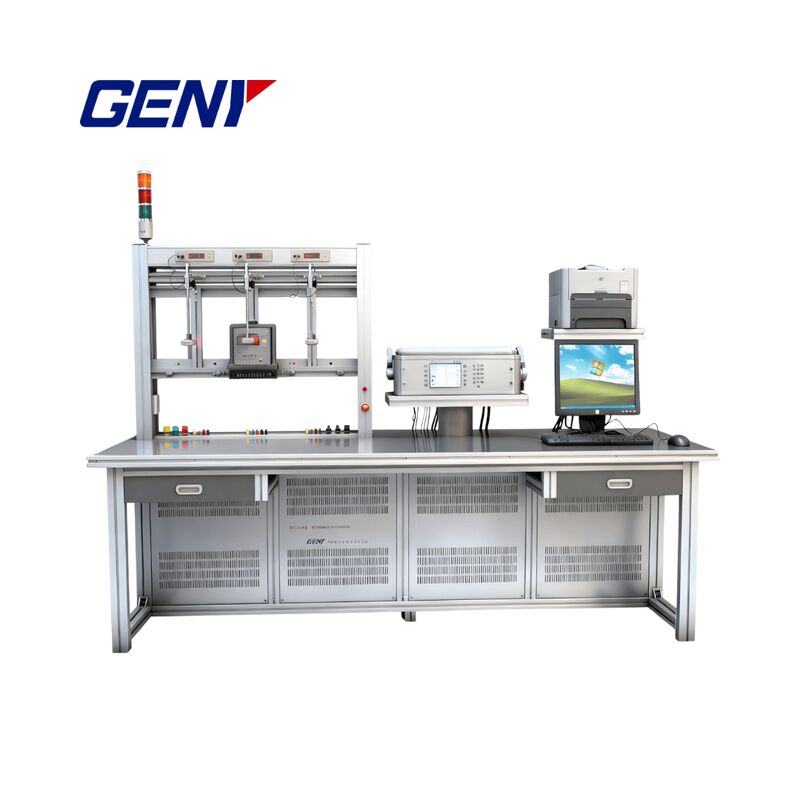

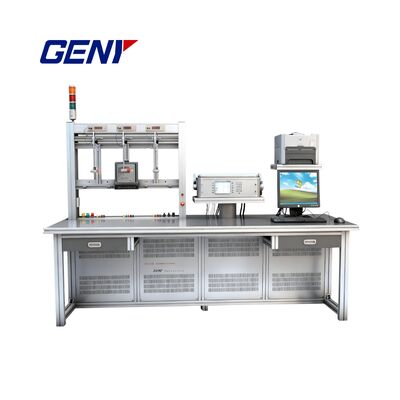

| Type | YC1893D-6 | YC1893D-12 | YC1893D-24 | YC1893D-48 |
|---|---|---|---|---|
| Number of meter positions | 6 | 12 | 24 | 48 |
| Accuracy | 0.05 | |||
| Power Source | YCS-103-250 | YCS-103-600 | YCS-103-1200 | YCS-103-2500 |
| Reference Standard Meter | SZ-03A-K8 | |||
| Scanning Head | YCG-2-series | |||
Voltage |
||||
| Test voltage output(Phase-Neutral) | 3x(24V-300V)(or customized) | |||
| Power of the voltage output | Max.3x100VA | Max.3x250VA | Max.3x500VA | Max.3x1000VA |
| Resolution | Better than 0.01% of full scale value of range | |||
| Setting accuracy | Better than 0.05% at the final range value | |||
| Stability | Better than 0.005%/h (integration time 150 s) | |||
| Load regulation from 0-max.load | Better than 0.01% | |||
| Distortion factor | Better than 0.3% for linear resistance load | |||
| Harmonics | 2nd-41st free programmable | |||
Current |
||||
| Test current output | 3x(1mA-120A/200A) | |||
| Power of the current output | Max.3x250VA | Max.3x500VA | Max.3x1000VA | Max.3x2000VA |
| Resolution | Better than 0.01% of full scale value of range | |||
| Setting accuracy | Better than 0.05% at the final range value | |||
| Stability | Better than 0.005%/h (integration time 150 s) | |||
| Load regulation from 0-max.load | Better than 0.01% | |||
| Distortion factor | Better than 0.3% for linear resistance load | |||
| Harmonics | 2nd-41st free programmable | |||
Phase angle |
||||
| Range | 0-360° | |||
| Resolution | 0.01° | |||
| Setting accuracy | 0.1° | |||
Frequency |
||||
| Range | 45Hz-65Hz | |||
| Resolution | 0.01Hz | |||
Error display |
||||
| Type of error display | Red LED | |||
| Resolution of the error displays | 8 digits | |||
