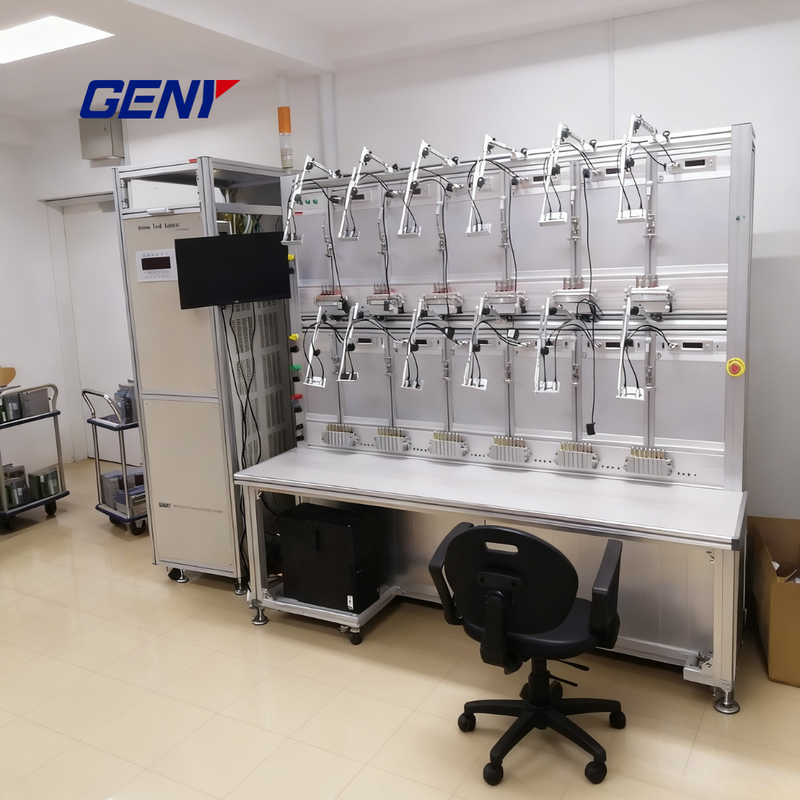

YC-1891D-24 Single-phase Electric Energy Meter Testing System Accurate

YC-1891D-24 Single-phase Electric Energy Meter Testing System Accurate

ชื่อแบรนด์: GENY
เลขรุ่น: YC1893D/YC1891D
ขั้นต่ำ: 1 ชิ้น
ราคา: ต่อรองได้
เงื่อนไขการจ่ายเงิน: l/c, t/t, d/p
ความสามารถในการจําหน่าย: 100/ปี
ข้อมูลรายละเอียด
สถานที่กำเนิด:
จีน
ได้รับการรับรอง:
ISO, CE
แรงดันทดสอบ (เฟสเป็นกลาง):
3 × (24 V - 500 V) หรือปรับแต่งเอง
ทดสอบกระแส::
3 × (1 มิลลิแอมป์ - 120 แอมป์)
การตั้งค่าความแม่นยำ:
ดีกว่า 0.05% ที่ค่าช่วงสุดท้าย
ความมั่นคง:
ดีกว่า 0.005% / ชม. (เวลาบูรณาการ 150 วินาที)
ปัจจัยการบิดเบือน:
ดีกว่า 0.3% สำหรับภาระความต้านทานเชิงเส้น
รายละเอียดการบรรจุ:
กรณีไม้อัด
สามารถในการผลิต:
100/ปี
เน้น:

Single-phase electric energy meter tester

,

Stationary meter test system accurate

,

YC-1891D-24 energy meter tester

คําอธิบายสินค้า
YC-1891D-24 Single-phase Electric Energy Meter Testing System Accurate
Smart Energy Meter Test System with Programmable Harmonics & High Accuracy

Guangzhou GENY Electric Co., Ltd Meter Test System is a high-precision solution designed for testing, calibration, and verification of single-phase and three-phase energy meters. Built with advanced control and measurement technology, it ensures exceptional accuracy, stability, and reliability under a wide range of environmental and electrical conditions. Perfect for laboratories, power utilities, and meter manufacturers.

Specifications
Power Source
Voltage Output
  • Test Voltage (Phase-Neutral): 3 × (24 V - 500 V) or customized
  • Output Power: 3 × 100 VA
  • Resolution: < 0.01% of full-scale range
  • Setting Accuracy: < 0.05% at final range value
  • Stability: < 0.005%/h (integration time 150 s)
  • Load Regulation (0-max): < 0.01%
  • Distortion Factor: < 0.3% (linear resistive load)
  • Harmonics: Programmable 2nd to 21st order
Current Output
  • Test Current: 3 × (1 mA - 120 A)
  • Output Power: 3 × 150 VA
  • Resolution: < 0.01% of full-scale range
  • Setting Accuracy: < 0.05% at final range value
  • Stability: < 0.005%/h (integration time 150 s)
  • Load Regulation (0-max): < 0.01%
  • Distortion Factor: < 0.3% (linear resistive load)
  • Harmonics: Programmable 2nd to 21st order
Phase Angle
  • Range: 0° - 360°
  • Resolution: 0.01°
  • Accuracy: ±0.1°
Frequency
  • Range: 45 Hz - 65 Hz
  • Resolution: 0.01 Hz
Key Features & Benefits
  • High-precision measurement with accuracy up to ±0.01%
  • Programmable harmonics for flexible testing (2nd-21st order)
  • Stable operation under wide temperature and humidity ranges
  • User-customizable voltage and current output ranges
  • Built-in surge protection and advanced grounding system
  • Ideal for energy meter calibration, power testing, and R&D applications
