BLE-IR Bluetooth Optical Probe

BLE-IR Bluetooth Optical Probe

ชื่อแบรนด์: GENY
เลขรุ่น: โพรบออปติคอลบลูทูธ BLE-IR
ขั้นต่ำ: 1
ราคา: negotiate rates
เงื่อนไขการจ่ายเงิน: T/T, L/C, D/P, T/T
ความสามารถในการจําหน่าย: 100 ชิ้น / 1 เดือน
ข้อมูลรายละเอียด
สถานที่กำเนิด:
จีน
ได้รับการรับรอง:
ISO, CE
การเชื่อมต่อแบบคู่:
Bluetooth 5.3 BLE และ USB Type-C (ไม่มีไดรเวอร์)
การสนับสนุนโปรโตคอล::
IEC 62056-21 (โหมด C / โหมด E), ANSI C12.18
โหมดอัจฉริยะ:
ตรวจจับพารามิเตอร์การสื่อสารอัตโนมัติเพื่อลดเวลาการตั้งค่า
การออกแบบที่ทนทาน:
การยึดเกาะด้วยแม่เหล็กที่แข็งแกร่ง (≥10 N) โครงสร้างทนต่อแรงกระแทก (IP51)
อายุการใช้งานแบตเตอรี่ที่ยาวนาน:
ใช้งานต่อเนื่องสูงสุด 10 ชั่วโมง สแตนด์บาย 60 วัน
การชาร์จอย่างรวดเร็ว:
80% ใน 30 นาทีผ่าน USB-C PD
น้ำหนักเบาและกะทัดรัด::
Ø32 มม. × 23 มม., µ35 ก
รายละเอียดการบรรจุ:
เคสไม้อัด
สามารถในการผลิต:
100 ชิ้น / 1 เดือน
เน้น:

BLE-IR Bluetooth optical probe

,

Bluetooth optical probe with warranty

,

Meter testing accessory optical probe

คําอธิบายสินค้า

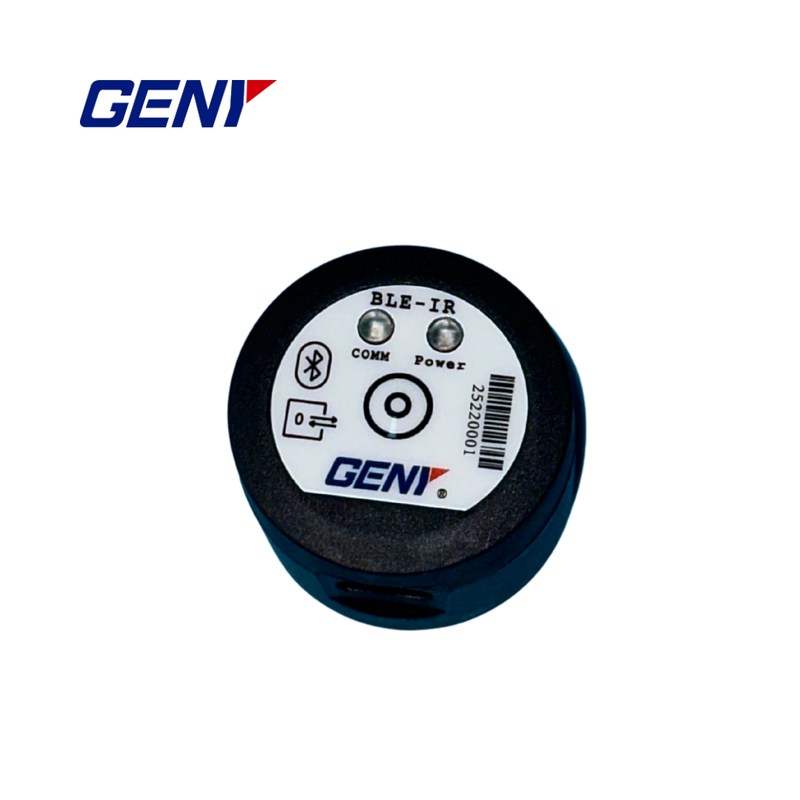

BLE-IR Bluetooth Optical Probe
Next-Generation Optical Communication for Smart Meter Testing

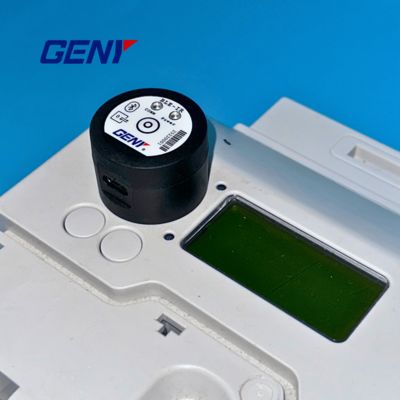

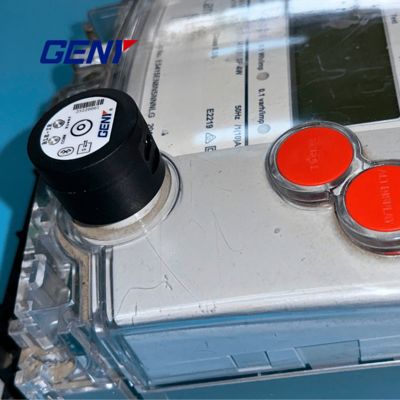

The BLE-IR from Guangzhou Geny Electric Ltd. is a next-generation Bluetooth optical probe designed to make smart meter testing, commissioning, and maintenance faster and easier. With Bluetooth 5.3 BLE and USB Type-C dual connectivity, it ensures fast, reliable, and flexible optical communication for both lab and field environments.

Key Features
  • Dual Connectivity: Bluetooth 5.3 BLE & USB Type-C (driver-free)
  • Protocol Support: IEC 62056-21 (Mode C / Mode E), ANSI C12.18
  • Smart Mode: Auto-detects communication parameters to reduce setup time
  • Rugged Design: Strong magnetic adhesion (≥10 N), impact-resistant housing (IP51)
  • Long Battery Life: Up to 10 hours continuous use, 60 days standby
  • Fast Charging: 80% in 30 minutes via USB-C PD
  • Lightweight & Compact: Ø32 mm × 23 mm, ≈35 g
Highlights
  • Adaptive IEC 62056-21 communication for faster, error-free testing
  • Works with Geny test systems or third-party tools
  • Firmware upgradable via Bluetooth or USB
Availability

Now available through Guangzhou Geny Electric and authorized distributors.
Optional USB-C cables (1 m-3 m) and magnet grades (N45/N52) available.
